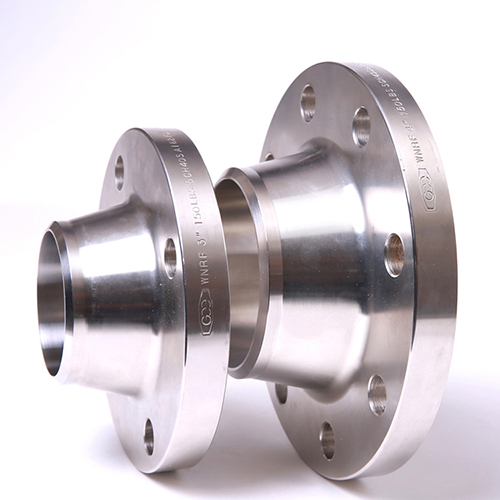

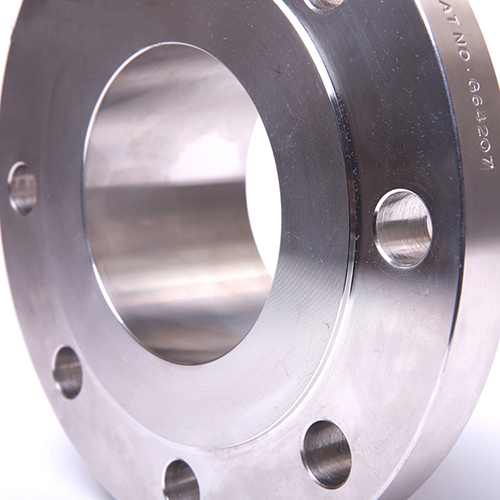

Weld Neck Flange
WNRF Flange 300# 30" WT22.23 ASME B16.47 A ;ASTM A105N ;NACE MR0175/ ISO 15156
Standard:ANSI B16.5/ B16.47/ B16.36/ API605, 6A, 6B/ MSS SP44/ AWWA C207DIN 2527/ 2528/ 2561/ 2565/ 2566/ 2573/ 2576/ 2627/ 2630/ 86029/ 86030 BS 4504 PN16/PN40, BS10 TABLE E/TABLE D
JIS/KS 5K, 10K, 16K, 20K, 30K
UNI 2253/2254/2276-2278/2281-2284/6083/6
Login to see price
JIS/KS 5K, 10K, 16K, 20K, 30K
UNI 2253/2254/2276-2278/2281-2284/6083/6
Description
Flange Standard
ANSI B16.5/ B16.47/ B16.36/ API605, 6A, 6B/ MSS SP44/ AWWA C207
DIN 2527/ 2528/ 2561/ 2565/ 2566/ 2573/ 2576/ 2627/ 2630/ 86029/ 86030 etc.
BS 4504 PN16/PN40, BS10 TABLE E/TABLE D
JIS/KS 5K, 10K, 16K, 20K, 30K
UNI 2253/2254/2276-2278/2281-2284/6083/6084/6089-6093
GOST 12820/12821
American Series: CLASS 150, CLASS 300, CLASS 400, CLASS 600, CLASS 900, CLASS 1500, CLASS 2500
European Series: PN 2.5, PN 6, PN 10, PN 16, PN 25, PN 40, PN 63, PN 100, PN 160, PN 250, PN 320, PN 400
Flange Facing Types:
Flat Face (FF), Raised face (RF), groove (G), female(F), ring joints face(RJ)
Material:
Carbon steel (ASTM A105 A350LF2 LF3 A694 A36 Q235 A3 20# 45# 20Mn 16Mn Q345 etc.);
Stainless steel (SS316, SS304, SS316L, SS304L, SS321 SS317 F51 F53 316Ti etc.);
Alloy steel (A182F5 A182F11 F22 15CrMo 30CrMo 35CrMo 40CrMO 42CrMo 4130 4140 etc.)
| PS | OD | D | B (WNF) |
B (BLF) |
H | A |
| 26 | 660.4 | 870 | 66.7 68.3 |
66.7 68.3 |
119 120.6 |
676 |
| 28 | 711.2 | 925 | 69.9 71.5 |
69.9 71.5 |
124 125.6 |
727 |
| 30 | 762 | 985 | 73.1 74.7 |
73.1 74.7 |
135 136.6 |
781 |
| 32 | 812.8 | 1060 | 79.4 81 |
79.4 81 |
143 144.6 |
832 |
| 34 | 863.6 | 1110 | 81 82.6 |
81 82.6 |
148 149.6 |
883 |
| 36 | 914.4 | 1170 | 88.9 90.5 |
88.9 90.5 |
156 157.6 |
933 |
| 38 | 965.2 | 1240 | 85.8 87.4 |
85.8 87.4 |
156 157.6 |
991 |
| 40 | 1016 | 1290 | 88.9 90.5 |
88.9 90.5 |
162 163.6 |
1041 |
| 42 | 1066.8 | 1345 | 95.3 96.9 |
95.3 96.9 |
170 171.6 |
1092 |
| 44 | 1117.6 | 1405 | 100.1 101.7 |
100.1 101.7 |
176 177.6 |
1143 |
| 46 | 1168.4 | 1455 | 101.6 103.2 |
101.6 103.2 |
184 185.6 |
1197 |
| 48 | 1219.2 | 1510 | 106.4 108 |
106.4 108 |
191 192.6 |
1248 |
| 50 | 1270 | 1570 | 109.6 111.2 |
109.6 111.2 |
202 203.6 |
1302 |
| 52 | 1320.8 | 1625 | 114.3 115.9 |
114.3 115.9 |
208 209.6 |
1353 |
| 54 | 1371.6 | 1685 | 119.1 120.7 |
119.1 120.7 |
214 215.6 |
1403 |
| 56 | 1422.4 | 1745 | 122.3 123.9 |
122.3 123.9 |
227 228.6 |
1457 |
| 58 | 1473.2 | 1805 | 127 128.6 |
127 128.6 |
233 234.6 |
1508 |
| 60 | 1524 | 1855 | 130.2 131.8 |
130.2 131.8 |
238 239.6 |
1559 |
General notes:
For dimensions "B" and "H" click IMPORTANT.
Blind flanges ASME B16.47 series A flanges (≥ NPS 26) are MSS SP-44 flanges.
ASME has incorporated the MSS-SP44 specification into B16.47 Series A and the API 605 Specification into B16.47 series B.These specification include only Welding Neck and Blind Flanges.
Dimensions for Classes 400, 600 and 900 NPS 38 and larger for Series A flanges are the same as for the Series B flanges.The length of the Stud Bolt does not include the height of the chamfers (points).
